1032 1031 SMD Surface Mount Fuses

Brand Name : Tian Rui

Model Number : 1032 1031

Certification : UL

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Rated Current : 50mA-10A

Rated Voltage : 125V-400V

Size : 0603 (1.6*0.8*0.5mm)

Type : Brick SMD fuse

Pacakge : 1031 1032

Cap : Silver Plated Brass

Body : Ceramic tube

Element : Silver Alloy

Shape : SMD type Ceramic Fuse

Packing : Tape

Contact Now

1032 1031 LCD Backlight Inverter System Telecom Square Type Slow Blow Fast Acting SMD Fuses

1032 1031 SMD Surface Mount Fuses

SCOPE
Notebook PC LCD/PDF TV LCD/PDP panel LCD monitor
LCD backlight inverter Portable DVE player Power supply Networking
PC server Cooling fan system Storage system Telecom system
Wireless base station White goods Game console Automotive
Battery charging circuit Office Automation Industrial equipment Medical equipment

1032 1031 SMD Surface Mount Fuses

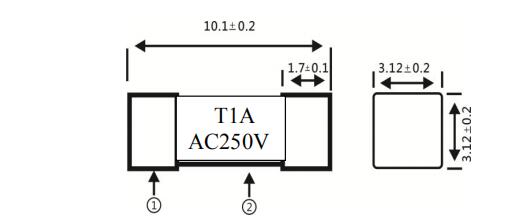

NO. Component Material Quantity
① Cap Silver Plated Brass 2
② Body Ceramic tube 1

PRODUCT CHARACTERISTICS

No. Item Contain Reference standard
1
Insulation Resistance		 10,000 ohms minimum MIL-STD-202G, Method 302 Test ConditionA
2
Solderability		 T=235℃±5 ℃, t=5+0/-0.5s,
Cover≧95%		 MIL-STD-202G, Method 208H
3
Resistance to Soldering Heat		 10 sec at 260℃ MIL-STD-202G, Method 210F Test
Condition B
4
Thermal Shock		 5 cycles, -65℃ to 125℃,
15minutes @each extreme		 MIL-STD-202G, Method 107G Test
Condition B
5
Mechanical Shock		 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1
6
Vibration		 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A
7
Moisture Resistance		 10 cycles MIL-STD-202G, Method 106G
8
Salt spray		 48hrs MIL-STD-202G, Method 101E Test
Condition B

ELECTRICAL CHARACTERISTICS

Ampere Rating % of Ampere Rating Opening Time
200mA – 10A 100% 4 hours, Min .
250% 120s, Max .

1032 1031 SMD Surface Mount Fuses

Reflow Condition Pb-Free Assembly
Preheating -Temperature Min Ts(min) 150℃
-Temperature Max Ts(man) 200℃
-Time Max 120 secs
Soldering -Temperature (TL)(Liquidus) 260℃
-Time Max (TL) 60 secs
-Temperature (TP) Max260℃
-Time Max (TP) 10 secs

1032 1031 SMD Surface Mount Fuses

1032 1031 SMD Surface Mount Fuses

Material Details

NO. Part Name Material
1 Element Silver Alloy .
2 Body . Body
3 Cap Brass gold plated

Product Characteristic

Rated current Rated voltage Breaking capacity Safety Aproval
UR
50mA ●
62mA ●
80mA ●
100mA ●
125mA ●
160mA ●
200mA ●
250mA ●
315mA ●
400mA ●
500mA 100A@125V ●
630mA 125V/250V /350 100A@250V ●
800mA V/400Vac 50A@350V ●
1.0A 50A@400V ●
1.25A ●
1.6A ●
2.0A ●
2.5A ●
3.15A ●
4.0A ●
5.0A ●
6.3A ●
8.0A ●
10.0A ●

Opening Time

% of Ampere Rating
Opening Time(UL)
100%
T>4hrs
250%
T<120s

1032 1031 SMD Surface Mount Fuses

Profile Featuren

Pb-Free

assembly

Average Ramp-up Rate

(Tsmax to Tp)

 3 °C /sec Max.

Preheat

Temperature Min Ts(min)

Temperature Max Ts(max)

Temperature Max Ts(max)

150°C

200°C

60-120 sec
Peak Temperature(Tp) 250°C

Time within 5°C of actual Peak

Temperature(Tp)

 5 sec
Melting tin time(TL) 20sec~4Osec
Ramp-down Rate 6°C/sec Max .
Time25 °Cto peak Temperature 8minutes Max
